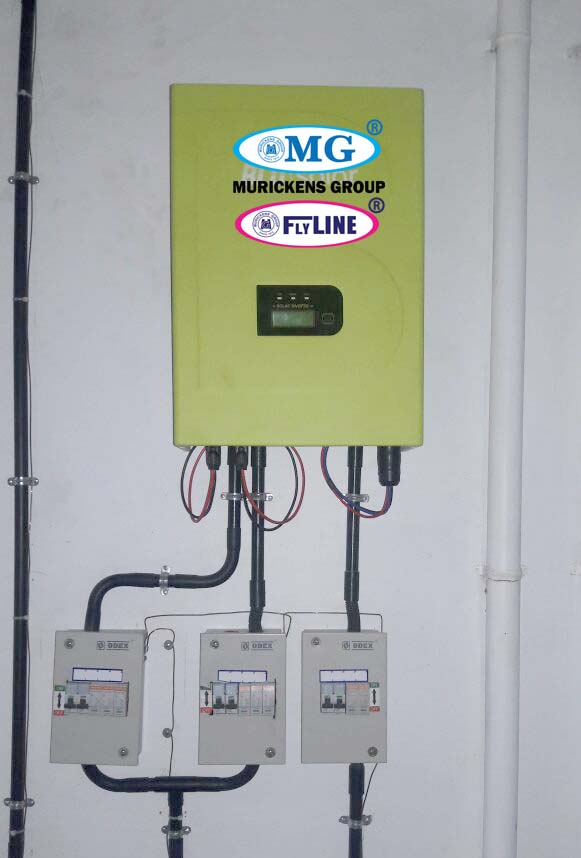

Flyline Solar On-grid Inverter

Murickens Group Since 1975. Murickens Group is an ISO Certified Solar Company, since 1990. Company has two registered Trade mark “ MG ’ and “ FLYLINE ”.In 1990 MG introduced solar water heater . In 2000 we introduced solar off grid power system with the brand name Flyline. In 2010 we started solar on grid power unit installation. Customer satisfaction is the key to our success.

What is on grid or grid tie inverter? This includes solar panel, on grid inverter, net meter etc.

DC power generated by the solar Panels is converted into AC by grid inverter and exported to ( E.B ) electricity board line. When we need power we can import power from E.B line. Both of these occur through the same service line. This on grid system works, only when there is E.B power supply. And this ensures safety .E.B. voltage should be between 192.5 volts and 260 Volts

INSTALLATION PROCEEDINGS:-

(1) Apply for Feasibility certificate from concerned electrical section office.
(2) Installation jobs.
(3) Apply to Inspection dept. of KSEB
(4) Commissioning of the Power Plant.

Murickens Group use only standard imported solar panels and grid inverters ensuring best performance. Our Company is having registered head office at Kaduthurhty , Kottayam (dist) Kerala and sales network almost all around kerala and other states of India.The diversity of products includes small solar units to higher capacity on grid solar inverter.

Common Features of solar on-grid inverter:-

►Max 98% Inverter efficiency ► Real time precise MPPT algorithm ► Flexible and economical system solution ►Wide input voltage operation range ►Free site selection with IP65 ►DC input voltage up to 1000V ►Internal DC switch ► Transformer less ► Compact design ► Multi MPPT controller ► MTL - String ► Ethernet / RF technology / WiFi- OPTIONS ► Easy access ►Easy data searching ►Easy configurations ► Easy installations ► Extra protection for spike loads ►Complaint free unit ►Power saving mode during night time ►Special design to reduce Dc / Ac conversion loss ►Conversion possibility to battery system with extra module.

Technical Features of Flyline Features of solar on-grid inverter:-

Input Data

FGS-2000

FGS-5000

FGS- 10000

FGS- 20000

Max. DC power

2300W

5800W

11000W

22000W

Max DC voltage

500V

580V

350V

350V

Start Voltage

150V

150V

1000V

1000V

PV voltage range

100V - 500V

100V - 580V

20A

20A

MPP voltage range /

nominal voltage

120V-500V/360V

120V-580V/360V

300V - 1000V / 600V

300V - 1000V / 600V

Full load DC voltage range

195V-450V

250V - 500V

400V - 800V

400V - 800V

Number of MPP trackers/

strings per MPP tracker

1 / 2

1 / 3

2/2

2/3

Max. input current



20A

180V - 1000V

180V - 1000V

Max. input current per string

12A/12A

20A

15A / 15

26A / 26A

Output (AC)







20KW

Rated AC output power

2000W

4600W

10KW

20KVA

Max. AC apparent power

2200W

5000W

10KVA

32A

Max. output current

11A

25A

16A

230V/400V

AC nominal voltage;

range

220V/230V/240V;

180Vac-280Vac

220V/230V/240V;

180Vac-280Vac

230V/400V

184 - 275V

AC grid frequency;

range

50Hz, 60Hz;±5Hz

50, 60Hz;±5Hz

184 - 275V

50-60Hz;

Power factor at rated power

1

1

1

44-55Hz/54-65Hz

Displacement power factor

configurable*





0 0.8leading - 0 0.8lagging

0~1leading - 0~1lagging

THDI

<3%

<3%

<3%

<3%

AC connection

Single phase

Single phase

3/N/PE

3/N/PE

Efficiency









Max.efficiency

Single phase

97.6%

98%

98%

Euro - eta

Single phase

97.2%

97.5%

97.5%

MPPT efficiency

Single phase

99.5%

99.5%

99.5%

Protection Devices









DC reverse polarity protection

Single phase

yes

yes

yes

DC switch for each MPPT

Single phase

yes

yes

yes

Output AC overcurrent protection

Single phase

yes

yes

yes

Output AC overvoltage

protection - varistor

Single phase

yes

yes

yes

Ground fault monitoring

Single phase

yes

yes

yes

Grid monitoring

Single phase

yes

yes

yes

Integrated all-pole sensitive

leakage current monitoring unit

Single phase

yes

yes

yes

General Data









Dimensitions(WHD) Weight

360/329/132

11.7KG

406/406/192 mm

21kg

490/740/235 mm

41kg

570/740/235 mm

60kg

Operating temperature range

-25 °C ... +60 °C

-25 °C ... +60 °C

-25 °C ... +60 °C (with

derating above45°C)

-25 °C ... +60 °C (with

derating above45°C)

Noise emission (typical)

25 dB(A)

25 dB(A)

55 dB(A)

55 dB(A)

Self-Consumption (night)

< 0.5 W

<0.5W

<0.5W

<0.5W

Standby consumption





12W

12W

Topology

Transformerless

Transformerless

Transformerless

Transformerless

Cooling concept

Natural

Natural

Smart cooling

Smart cooling

Environmental Protection Rating

IP 65

IP 65

IP 65

IP 65

Altitude

2000m without derating

2000m without derating

2000m

without derating

2000m

Relative Humidity

0~95%

0~100%

0~100%

without derating

0~100%

Features









DC connection

H4/MC4(opt)

H4/MC4(opt)

H4/MC4(opt)

H4/MC4(opt)

AC connection

Screw terminal

Screw terminal

Screw terminal

Screw terminal

Display

LCD

LCD

LCD

LCD

Interfaces: RS232/R485/

Ethernet/RF/WiFi

yes / yes /

opt / opt / opt

yes / yes /

opt / opt / opt

yes / opt

yes / opt

Warranty:5 years / 10 years

yes / opt

yes / opt

yes / yes /

yes / yes /
